材质:ZG200-400C
规格:75-30000kg
表面:黑漆
证书:CCS,ZC,BV,ABS,NK,LR,GL,RINA,KR,DNV
包装:裸装
名义重量 (KG) |
尺寸(mm) | 名义重量 (KG) |
尺寸(mm) | |||||||||||||||

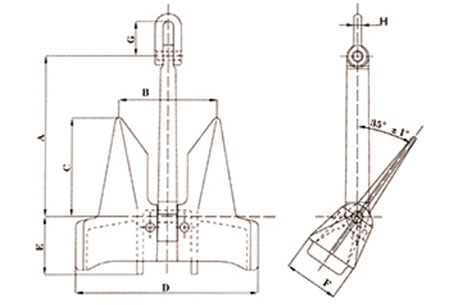

A | B | C | D | E | F | G | H | A | B | C | D | E | F | G | H | |||
75 | 550 | 325 | 339 | 606 | 182 | 185 | 115 | 24 | 4500 | 2170 | 1295 | 1334 | 2405 | 718 | 735 | 450 | 100 | |
100 | 610 | 380 | 373 | 704 | 202 | 200 | 130 | 28 | 4840 | 2225 | 1330 | 1367 | 2465 | 737 | 755 | 480 | 110 | |
120 | 635 | 380 | 390 | 704 | 213 | 215 | 145 | 32 | 5175 | 2275 | 1360 | 1398 | 2520 | 753 | 770 | 480 | 110 | |
180 | 740 | 440 | 456 | 822 | 245 | 252 | 160 | 36 | 5610 | 2340 | 1400 | 1437 | 2590 | 773 | 790 | 500 | 110 | |
225 | 828 | 495 | 509 | 915 | 265 | 277 | 175 | 40 | 6000 | 2390 | 1426 | 1468 | 2646 | 788 | 810 | 500 | 110 | |
250 | 828 | 495 | 509 | 915 | 273 | 280 | 175 | 40 | 6225 | 2420 | 1440 | 1487 | 2678 | 800 | 820 | 540 | 117 | |
300 | 880 | 525 | 542 | 975 | 292 | 298 | 192 | 45 | 6525 | 2450 | 1460 | 1506 | 2712 | 810 | 830 | 540 | 117 | |
340 | 920 | 550 | 564 | 1015 | 304 | 310 | 215 | 48 | 6975 | 2510 | 1500 | 1540 | 2775 | 832 | 848 | 580 | 121 | |
360 | 900 | 550 | 564 | 1015 | 310 | 313 | 215 | 48 | 7350 | 2560 | 1530 | 1572 | 2832 | 846 | 866 | 580 | 121 | |
430 | 990 | 590 | 609 | 1098 | 328 | 336 | 215 | 48 | 7875 | 2610 | 1560 | 1604 | 2890 | 867 | 884 | 600 | 130 | |
495 | 1025 | 610 | 630 | 1135 | 338 | 348 | 235 | 50 | 8325 | 2665 | 1590 | 1637 | 2950 | 882 | 902 | 600 | 130 | |
585 | 1100 | 660 | 677 | 1220 | 364 | 375 | 235 | 50 | 8775 | 2710 | 1610 | 1663 | 2996 | 898 | 916 | 630 | 135 | |
675 | 1150 | 690 | 708 | 1278 | 382 | 390 | 255 | 60 | 9300 | 2765 | 1650 | 1700 | 3064 | 915 | 936 | 640 | 140 | |
765 | 1205 | 720 | 740 | 1335 | 397 | 408 | 255 | 60 | 9675 | 2805 | 1675 | 1723 | 3104 | 928 | 948 | 640 | 140 | |
855 | 1250 | 745 | 768 | 1385 | 413 | 420 | 280 | 62 | 10125 | 2850 | 1700 | 1750 | 3152 | 942 | 960 | 640 | 140 | |
970 | 1300 | 775 | 800 | 1445 | 431 | 440 | 280 | 62 | 10575 | 2880 | 1720 | 1770 | 3192 | 956 | 976 | 660 | 145 | |
1080 | 1350 | 805 | 829 | 1495 | 450 | 455 | 280 | 62 | 11025 | 2930 | 1750 | 1800 | 3247 | 968 | 990 | 660 | 145 | |
1200 | 1400 | 835 | 860 | 1545 | 462 | 470 | 310 | 68 | 11700 | 2990 | 1780 | 1835 | 3308 | 988 | 1010 | 700 | 155 | |
1305 | 1440 | 860 | 885 | 1595 | 475 | 485 | 310 | 68 | 12075 | 3010 | 1800 | 1850 | 3343 | 1000 | 1020 | 700 | 155 | |
1440 | 1486 | 885 | 913 | 1645 | 492 | 505 | 310 | 68 | 12675 | 3065 | 1810 | 1885 | 3364 | 1013 | 1028 | 700 | 155 | |
1525 | 1535 | 915 | 942 | 1695 | 506 | 518 | 340 | 74 | 13350 | 3130 | 1870 | 1924 | 3470 | 1033 | 1060 | 700 | 155 | |
1710 | 1575 | 940 | 968 | 1745 | 520 | 532 | 340 | 74 | 14100 | 3180 | 1900 | 1952 | 3520 | 1051 | 1076 | 730 | 160 | |
1845 | 1615 | 965 | 993 | 1785 | 533 | 546 | 340 | 74 | 14700 | 3230 | 1925 | 1980 | 3570 | 1067 | 1090 | 730 | 160 | |
1980 | 1650 | 985 | 1015 | 1830 | 546 | 560 | 380 | 82 | 15400 | 3270 | 1955 | 2011 | 3626 | 1083 | 1108 | 770 | 170 | |
2100 | 1686 | 1005 | 1036 | 1865 | 557 | 570 | 380 | 82 | 16100 | 3320 | 1980 | 2042 | 3680 | 1100 | 1125 | 770 | 170 | |
2295 | 1740 | 1035 | 1068 | 1920 | 574 | 588 | 380 | 82 | 16900 | 3350 | 2000 | 2060 | 3720 | 1118 | 1144 | 770 | 170 | |
2475 | 1780 | 1062 | 1093 | 1970 | 588 | 602 | 385 | 82 | 17250 | 3380 | 2020 | 2075 | 3740 | 1126 | 1144 | 770 | 170 | |
2655 | 1820 | 1085 | 1118 | 2018 | 602 | 615 | 385 | 82 | 17800 | 3440 | 2050 | 2112 | 3806 | 1137 | 1162 | 800 | 180 | |
2835 | 1862 | 1110 | 1144 | 2057 | 619 | 625 | 410 | 90 | 18800 | 3500 | 2090 | 2150 | 3875 | 1158 | 1185 | 800 | 180 | |
3040 | 1895 | 1130 | 1165 | 2100 | 630 | 640 | 410 | 90 | 20000 | 3570 | 2130 | 2195 | 3956 | 1182 | 1210 | 820 | 185 | |
3550 | 2030 | 1200 | 1247 | 2225 | 664 | 680 | 415 | 100 | 25000 | 4100 | 2440 | 2519 | 4577 | 1273 | 1375 | 880 | 200 | |
3940 | 2080 | 1240 | 1277 | 2300 | 688 | 705 | 450 | 100 | 30000 | 4360 | 2890 | 2677 | 4663 | 1512 | 1380 | 940 | 210 |
