材质:ZG200-400C
规格:105-30000kg
表面:黑漆,镀锌
证书:CCS,ZC,BV,ABS,NK,LR,GL,RINA,KR,DNV

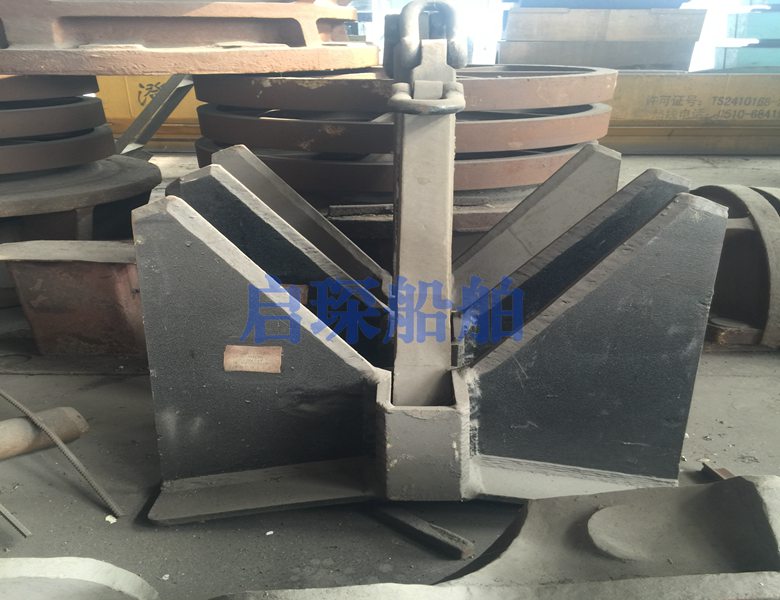

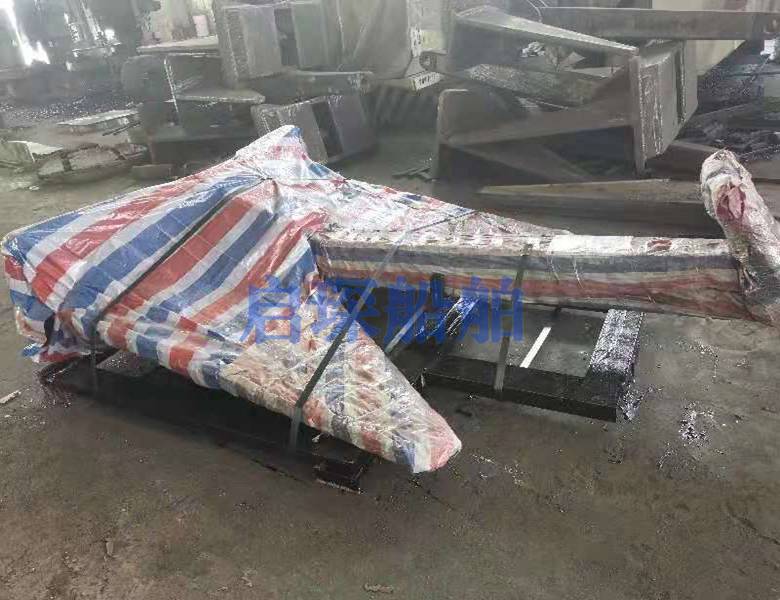

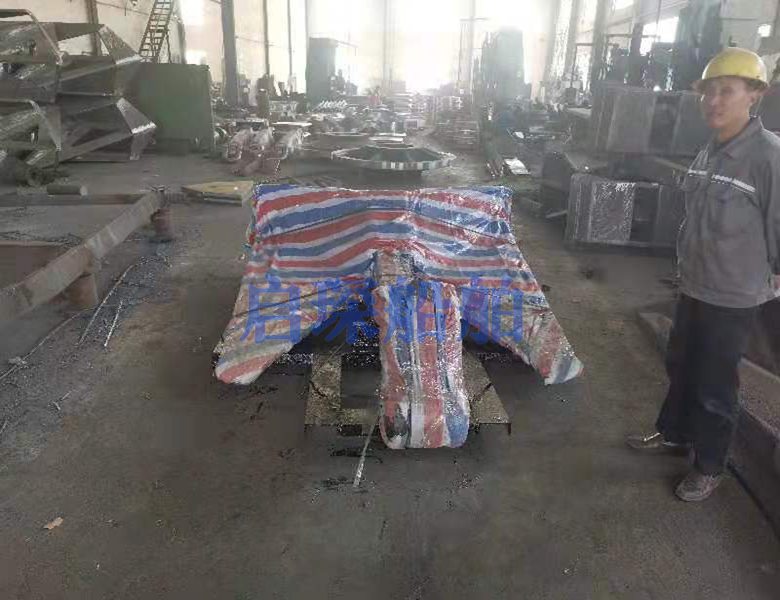

包装:裸装
名义重量 Nominal Weight (KG) |
尺寸 SIZE(mm) | 名义重量 Nominal Weight (KG) |
尺寸 SIZE(mm) | |||||||||||
A | A1 | B | C | D | E | A | A1 | B | C | D | E | |||
105 | 648 | 658 | 252 | 422 | 240 | 710 | 3445 | 2056 | 2088 | 792 | 1340 | 775 | 2252 | |
135 | 705 | 716 | 274 | 459 | 262 | 774 | 3670 | 2100 | 1230 | 825 | 1368 | 790 | 2298 | |
160 | 746 | 758 | 290 | 486 | 276 | 818 | 3940 | 2150 | 2182 | 835 | 1400 | 808 | 2354 | |
180 | 776 | 787 | 302 | 505 | 288 | 850 | 4210 | 2198 | 2230 | 854 | 1342 | 825 | 2406 | |
225 | 836 | 848 | 325 | 544 | 308 | 915 | 4500 | 2236 | 2272 | 870 | 1462 | 836 | 2454 | |
270 | 888 | 902 | 342 | 574 | 326 | 965 | 4840 | 2302 | 2336 | 894 | 1499 | 865 | 2520 | |
300 | 920 | 933 | 358 | 598 | 340 | 1008 | 5175 | 2355 | 2386 | 914 | 1533 | 885 | 2578 | |
360 | 978 | 994 | 380 | 638 | 362 | 1072 | 5250 | 2366 | 2400 | 918 | 1540 | 890 | 2590 | |
430 | 1038 | 1053 | 404 | 675 | 384 | 1138 | 5515 | 2405 | 2440 | 934 | 1566 | 905 | 2634 | |
495 | 1086 | 1102 | 422 | 708 | 402 | 1190 | 5850 | 2455 | 2490 | 952 | 1598 | 922 | 2685 | |
565 | 1136 | 1155 | 125 | 740 | 420 | 1245 | 6225 | 2504 | 2542 | 972 | 1632 | 942 | 2473 | |
675 | 1205 | 1224 | 468 | 785 | 446 | 1322 | 6975 | 2600 | 2640 | 1010 | 1695 | 978 | 2848 | |
765 | 1257 | 1276 | 488 | 818 | 465 | 1378 | 7875 | 2695 | 2735 | 1050 | 1774 | 1012 | 2980 | |
855 | 1286 | 1306 | 500 | 842 | 482 | 1411 | 8325 | 2758 | 2784 | 1070 | 1806 | 1042 | 3035 | |
970 | 1360 | 1380 | 528 | 885 | 502 | 1480 | 8775 | 2798 | 2825 | 1089 | 1830 | 1058 | 3074 | |
1080 | 1410 | 1430 | 545 | 918 | 522 | 1544 | 9225 | 2865 | 2894 | 1108 | 1858 | 1074 | 3121 | |
1195 | 1458 | 1497 | 566 | 949 | 540 | 1598 | 9675 | 2905 | 2934 | 1126 | 1888 | 1090 | 3172 | |
1305 | 1486 | 1509 | 580 | 973 | 556 | 1635 | 10125 | 3942 | 2970 | 1144 | 1918 | 1108 | 3223 | |
1440 | 1535 | 1560 | 596 | 1002 | 576 | 1684 | 10575 | 2980 | 3010 | 1160 | 1946 | 1124 | 3270 | |
1575 | 1584 | 1608 | 615 | 1032 | 596 | 1735 | 11025 | 3028 | 3058 | 1176 | 1975 | 1140 | 3317 | |
1710 | 1628 | 1652 | 632 | 1060 | 612 | 1782 | 12075 | 3122 | 3152 | 1212 | 2034 | 1175 | 3418 | |
1845 | 1670 | 1695 | 648 | 1088 | 628 | 1828 | 12675 | 3162 | 3192 | 1230 | 3064 | 1192 | 3468 | |
1980 | 1704 | 1732 | 668 | 1120 | 638 | 1880 | 13350 | 3222 | 3253 | 1254 | 2104 | 1215 | 3535 | |
2140 | 1754 | 1768 | 676 | 1135 | 655 | 1908 | 14100 | 3295 | 3328 | 1276 | 2142 | 1238 | 3600 | |
2295 | 1795 | 1822 | 698 | 1169 | 675 | 1966 | 15000 | 3358 | 3380 | 1294 | 2166 | 1262 | 3640 | |
2475 | 1841 | 1868 | 715 | 1199 | 692 | 2016 | 16125 | 3444 | 3470 | 1326 | 2220 | 1294 | 3728 | |
2750 | 1907 | 1930 | 738 | 1238 | 715 | 2082 | 20000 | 3690 | 3728 | 1429 | 2399 | 1385 | 4030 | |
2835 | 1926 | 1955 | 748 | 1255 | 725 | 2110 | 25000 | 3986 | 4026 | 1544 | 2590 | 1496 | 4354 | |
3040 | 1972 | 2002 | 765 | 1285 | 742 | 2160 | 30000 | 4238 | 4270 | 1640 | 2754 | 1590 | 4626 | |
3240 | 2014 | 2044 | 782 | 1312 | 757 | 2205 |
