● 铝套
自 #1 到 #60 完全按 EN13411-3(DIN3093) 标准生产，为保证生产和使用，我们的铝套材料严格遵照 EN13411-3 (DIN3093) 对应的材料组成和机械性能要求。

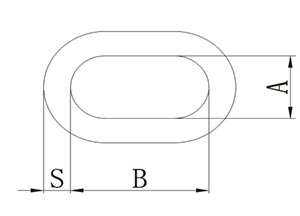

| 型号 | 尺寸(毫米) | 重量 (KGS/ PCS) | 型号 | 尺寸(毫米) | 重量 (KGS/ PCS) | |||||
| A | B | S | A | B | S | |||||
| 2.5 | 2.7 | 5.4 | 1.05 | 0.000499 | 24 | 26.4 | 52.8 | 10.0 | 0.376 | |
| 3 | 3.3 | 6.6 | 1.25 | 0.000843 | 26 | 26.5 | 57.0 | 10.9 | 0.481 | |
| 3.5 | 3.8 | 7.6 | 1.5 | 0.00132 | 28 | 31.0 | 62.0 | 11.7 | 0.603 | |
| 4 | 4.4 | 8.8 | 1.7 | 0.00181 | 30 | 33.1 | 66.2 | 12.5 | 0.739 | |
| 4.5 | 4.9 | 9.8 | 1.9 | 0.00261 | 32 | 35.2 | 70.4 | 13.4 | 0.897 | |
| 5 | 5.5 | 11.0 | 2.1 | 0.00357 | 34 | 37.8 | 75.6 | 14.2 | 1.077 | |
| 6 | 6.6 | 13.2 | 2.5 | 0.00586 | 36 | 39.8 | 79.6 | 15.0 | 1.275 | |
| 6.5 | 7.2 | 14.4 | 2.7 | 0.00755 | 38 | 41.9 | 83.8 | 15.8 | 1.503 | |
| 7 | 7.8 | 15.6 | 2.9 | 0.00953 | 40 | 44.0 | 88.0 | 16.6 | 1.734 | |
| 8 | 8.8 | 17.6 | 3.3 | 0.0137 | 42 | 46.2 | 92.4 | 17.5 | ||
| 9 | 9.9 | 19.8 | 3.7 | 0.0198 | 44 | 48.4 | 96.8 | 18.3 | 2.314 | |
| 10 | 10.9 | 21.8 | 4.1 | 0.0264 | 46 | 50.6 | 101.2 | 19.2 | ||
| 11 | 12.1 | 24.2 | 4.5 | 0.0358 | 48 | 52.8 | 105.6 | 20.0 | 3.01 | |
| 12 | 13.2 | 26.4 | 4.9 | 0.0458 | 50 | 55.0 | 110.0 | 20.8 | ||
| 13 | 14.2 | 28.4 | 5.4 | 0.0597 | 52 | 57.2 | 114.4 | 21.6 | 3.813 | |
| 14 | 15.3 | 30.6 | 5.8 | 0.0735 | 54 | 59.4 | 118.8 | 22.5 | ||
| 16 | 17.5 | 35.0 | 6.7 | 0.111 | 56 | 61.6 | 123.2 | 23.3 | 4.772 | |
| 18 | 19.6 | 39.2 | 7.6 | 0.159 | 58 | 63.8 | 127.6 | 24.2 | ||
| 20 | 21.7 | 43.4 | 8.4 | 0.217 | 60 | 66.0 | 132.0 | 25.0 | 5.88 | |
| 22 | 24.3 | 48.6 | 9.2 | 0.292 | ||||||
