| C型快速连接卸扣 QUICK LINK | ||||||||
| 许用负荷 (t) |
行业代码 | 主要尺寸 (mm) | 单重(Kg) | |||||

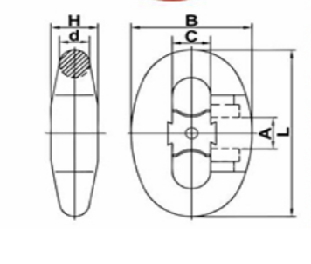

| d | L | B | H | A | C | |||
| 1.5 | 1 | 13 | 78 | 52 | 19.5 | 15 | 17 | 1 |
| 2.5 | 2 | 15 | 90 | 60 | 22.5 | 17.5 | 20 | 1 |
| 3 | 3 | 17 | 102 | 68 | 25.5 | 19 | 22 | 1 |
| 3.5 | 4 | 19 | 114 | 76 | 30 | 21 | 26 | 1 |
| 4 | 5 | 21 | 126 | 84 | 33 | 23 | 27 | 1.5 |
| 5 | 6 | 23 | 138 | 92 | 35 | 26 | 30 | 2 |
| 6.3 | 7 | 25 | 150 | 100 | 38 | 28 | 32 | 2.3 |
| 8 | 8 | 27 | 162 | 108 | 41 | 31 | 35 | 2.5 |
| 10 | 9 | 29 | 174 | 116 | 44 | 34 | 37 | 3 |
| 12.5 | 10 | 32 | 192 | 128 | 48 | 37 | 41 | 4 |
| 14 | 11 | 35 | 210 | 140 | 53 | 40 | 44 | 6 |
| 16 | 12 | 38 | 228 | 152 | 57 | 43 | 48 | 7 |
| 21 | 13 | 41 | 246 | 164 | 62 | 46 | 51 | 9 |
| 25 | 14 | 44 | 264 | 176 | 68 | 50 | 54 | 12 |
| 32 | 15 | 47 | 282 | 188 | 71 | 52 | 58 | 14 |
| 45 | 16 | 56 | 334 | 220 | 84 | 66 | 68 | 23 |
