规格 :12.5-124MM
等级 : U1 U2 U3
产品类别: 有档锚链和无档锚链
表面处理 :黑漆 和镀锌
证书 : 工厂证书 ,ZC ,ABS ,CCS ,NK ,KR ,DNV ,BV ,RINA,LR,RS
货期 : 常规产品订单后 48小时发货,非常规产品订单后 10-15天

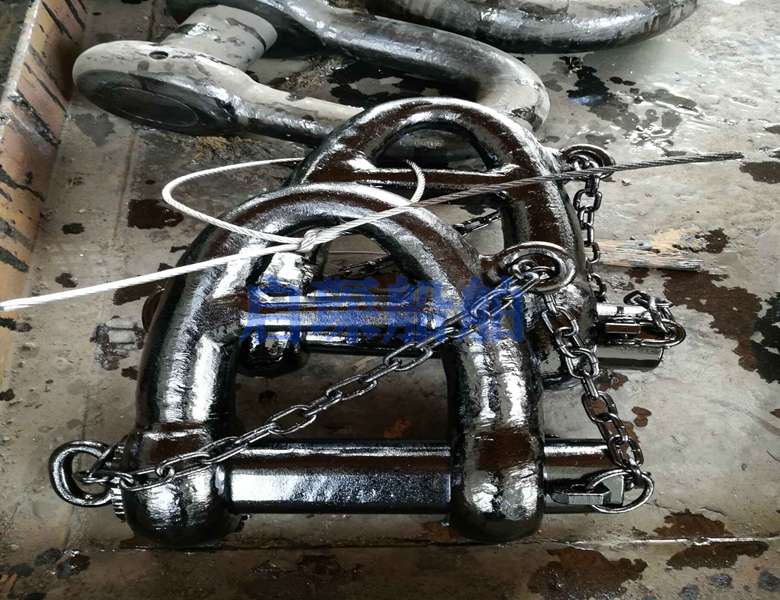

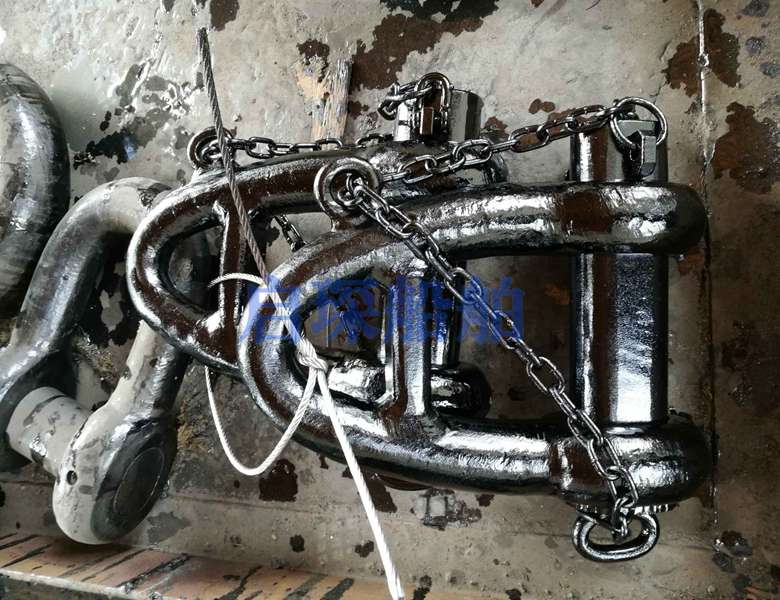

浮筒卸扣 A | |||||||||
Nominal Dia. (mm) |
D1 (mm) |
D2 (mm) |
L (mm) |
W (mm) |
F (mm) |
N (mm) |
R (mm) |
S (mm) |
T (mm) |
38 | 38 | 42 | 395 | 262 | 56 | 113 | 29 | 80 | 53 |
40 | 40 | 44 | 406 | 266 | 58 | 118 | 30 | 83 | 56 |
42 | 42 | 46 | 416 | 268 | 59 | 125 | 32 | 85 | 59 |
44 | 44 | 48 | 427 | 274 | 62 | 130 | 33 | 88 | 62 |
46 | 46 | 51 | 438 | 278 | 64 | 136 | 35 | 90 | 64 |
48 | 48 | 53 | 458 | 294 | 67 | 141 | 36 | 92 | 67 |
50 | 50 | 55 | 470 | 300 | 70 | 148 | 38 | 95 | 70 |
52 | 52 | 57 | 490 | 316 | 73 | 153 | 39 | 98 | 73 |
54 | 54 | 591 | 504 | 322 | 76 | 161 | 41 | 101 | 76 |
56 | 56 | 62 | 524 | 336 | 78 | 165 | 42 | 104 | 78 |
58 | 58 | 64 | 538 | 342 | 81 | 172 | 44 | 108 | 81 |
60 | 60 | 66 | 549 | 348 | 84 | 177 | 45 | 111 | 84 |
62 | 62 | 68 | 561 | 354 | 87 | 184 | 47 | 115 | 87 |
64 | 64 | 70 | 594 | 380 | 90 | 189 | 48 | 119 | 90 |
66 | 66 | 73 | 606 | 384 | 92 | 195 | 50 | 122 | 92 |
68 | 68 | 75 | 617 | 390 | 95 | 200 | 51 | 125 | 95 |
70 | 70 | 77 | 623 | 396 | 98 | 207 | 53 | 127 | 98 |
72 | 72 | 79 | 639 | 402 | 101 | 212 | 54 | 130 | 101 |
74 | 74 | 81 | 651 | 408 | 104 | 219 | 56 | 133 | 104 |
76 | 76 | 84 | 663 | 412 | 106 | 223 | 57 | 137 | 108 |
78 | 78 | 86 | 675 | 418 | 109 | 230 | 59 | 140 | 109 |
80 | 80 | 88 | 688 | 422 | 111 | 236 | 60 | 144 | 112 |
82 | 82 | 90 | 701 | 426 | 113 | 243 | 62 | 149 | 115 |
85 | 85 | 94 | 718 | 432 | 116 | 251 | 64 | 153 | 119 |
88 | 88 | 97 | 736 | 438 | 119 | 259 | 66 | 158 | 123 |
91 | 91 | 100 | 754 | 446 | 123 | 267 | 68 | 164 | 127 |
