● Forged Carbon Steel
● 2 times the Proof Load is 100% tested

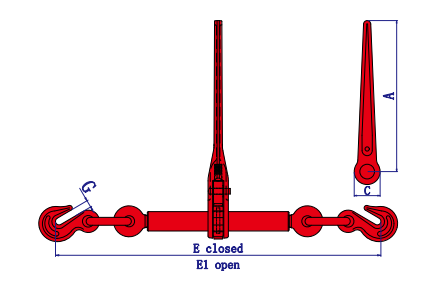

| 链条规格 Size Of Chain | 尺寸(毫米) Dimensions ( mm ) | 工作负荷(吨) W.L.L. ( T ) | 破断负荷(≥吨) M.B.S. ( ≥T ) | 重量(公斤) Weight (KG ) | |||||
| 英寸 in | 毫米 mm | A | C | E | E1 | G | |||
| 1/4 | 6 | 207.0 | 42.0 | 425.0 | 514.0 | 9.5 | 1.18 | 4.13 | 1.84 |
| 5/16-3/8 | 8-10 | 355.5 | 64.0 | 601.5 | 782.5 | 12.7 | 3.00 | 12.0 | 4.98 |
| 3/8-1/2 | 10-13 | 633.5 | 814.5 | 16.8 | 4.18 | 15.0 | 5.30 | ||
| 1/2-5/8 | 13-16 | 655.0 | 749.0 | 18.6 | 5.90 | 20.9 | 6.34 | ||
