● According to EN12195-3 standard
● 依据欧盟标准 EN12195-3
●Handle：forged
●手柄为锻造
●Suitable for G80 chain
●与 80 级链条配合使用
●Not for lifting,only for lashing
●决不能用于起重，仅用于捆绑
| 规格(毫米) SIZE ( mm) | 尺寸(毫米) Dimensions ( mm ) | 工作负荷(KN ) LC ( KN ) |
破断负荷(KN) BF ( KN ) |
重量(公斤) Weight ( KG ) |
||||

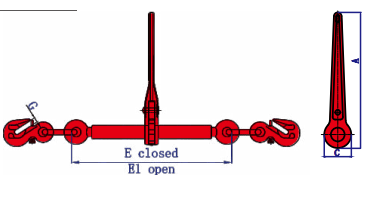

| A | C | E | E1 | G | ||||
| 6 | 207.0 | 42.0 | 423.0 | 511.0 | 8.0 | 22 | 44 | 1.70 |
| 8 | 280.8 | 57.5 | 335 | 500 | 10.9 | 40 | 80.4 | 4.30 |
| 10 | 297.5 | 64.0 | 365 | 520 | 13.2 | 63 | 126 | 5.10 |
| 13 | 354.5 | 66.0 | 370 | 515 | 16.6 | 100 | 212 | 6.76 |
