● 依据欧盟标准 EN12195-3
● 手柄为锻造
● 决不能用于起重，仅用于捆绑
| 规格（毫米）SIZE(mm) | 规格Size (毫米)Dimensions(mm) | 工作负荷(KN ) LC ( KN ) |
破断负荷(KN ) BF ( KN ) |
重量(公斤) Weight ( KG ) |
||||||

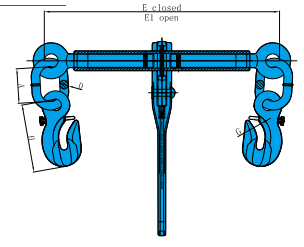

| A | ØD | H | G | L | E | E1 | ||||
| 8 | 50 | 12.5 | 98.2 | 10.8 | 280.8 | 335.0 | 500.0 | 50.0 | 100.0 | 3.70 |
| 10 | 57 | 16 | 119.8 | 13.7 | 297.5 | 365.0 | 520.0 | 80.0 | 160.0 | 5.80 |
| 13 | 80 | 20 | 158.6 | 16.6 | 354.5 | 370.0 | 515.0 | 134.0 | 268.0 | 9.30 |
