| 公称直径 Nominal dia. |

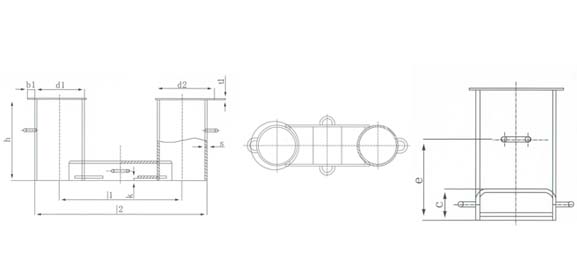

a1 | a2 | b1 | c | d2 | e | h | k | I1 | I2 | t | 重量 Weight (Kg) |
||
| 125 | 4 | 5 | 20 | 80 | 170 | 165 | 250 | 15 | 315 | 455 | 6 | 25.9 | ||
| 160 | 4 | 5 | 24 | 90 | 200 | 195 | 300 | 15 | 400 | 568 | 6 | 37.2 | ||
| 200 | 5 | 6 | 32 | 100 | 260 | 250 | 400 | 15 | 500 | 719 | 6 | 75.2 | ||
| 250 | 5 | 6 | 40 | 125 | 330 | 315 | 500 | 15 | 630 | 903 | 10 | 124 | ||
| 315 | 6 | 8 | 48 | 150 | 390 | 375 | 600 | 20 | 800 | 1124 | 10 | 230 | ||
| 400 | 8 | 9 | 56 | 175 | 480 | 435 | 700 | 20 | 1000 | 1406 | 10 | 356 | ||
| 500 | 10 | 9 | 72 | 200 | 600 | 515 | 830 | 25 | 1250 | 1758 | 12 | 732 | ||
| 630 | 10 | 9 | 88 | 225 | 720 | 615 | 1000 | 25 | 1570 | 2180 | 16 | 1084 | ||
| 710 | 10 | 9 | 96 | 250 | 830 | 675 | 1100 | 25 | 1750 | 2461 | 16 | 1532 | ||
