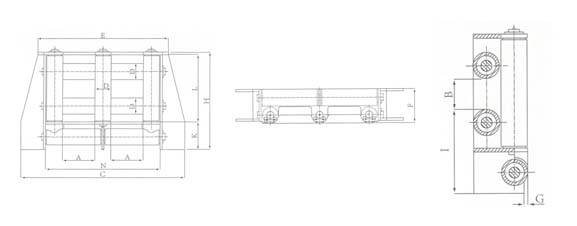

| 型号 Type |
缆绳直径 Wireφ |
A | B | C | D | E | F | G | H | I | K | L | N | 重量 Weight Kg |
| CDFG 2 | -12 | 180 | 100 | 914 | 80 | 710 | 170 | 10 | 510 | 253 | 125 | 356 | 620 | 280 |
| CDFG 3 | -16 | 230 | 130 | 1132 | 100 | 878 | 210 | 10 | 625 | 308 | 150 | 446 | 778 | 350 |
| CDFG 5 | -20 | 250 | 130 | 1272 | 120 | 998 | 250 | 15 | 710 | 363 | 175 | 506 | 878 | 450 |
| CDFG 8 | -24 | 280 | 160 | 1420 | 140 | 1136 | 288 | 20 | 825 | 423 | 215 | 576 | 996 | 620 |
| CDFG 12 | -32 | 300 | 160 | 1678 | 180 | 1314 | 366 | 25 | 975 | 518 | 260 | 676 | 1154 | 1100 |
| CDFG 20 | -40 | 320 | 180 | 1916 | 245 | 1596 | 500 | 35 | 1200 | 660 | 335 | 830 | 1396 | 2010 |
| CDFG 32 | -48 | 400 | 250 | 2400 | 300 | 1936 | 608 | 45 | 1465 | 788 | 405 | 1016 | 1716 | 4300 |
