| 型号 Type |
缆绳直径 Wireφ |

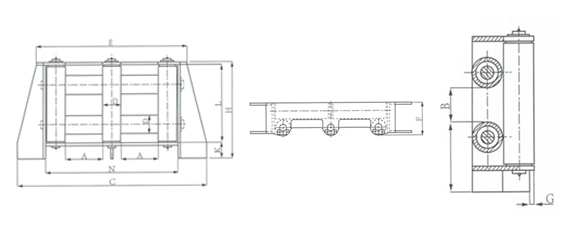

A | B | C | D | E | F | G | H | I | K | L | N | 重量(Kg) Weight |
| CDF 2 | -12 | 180 | 100 | 914 | 80 | 710 | 170 | 10 | 465 | 208 | 80 | 356 | 620 | 135 |
| CDF 3 | -16 | 230 | 130 | 914 | 80 | 878 | 210 | 10 | 575 | 258 | 100 | 356 | 620 | 200 |
| CDF 5 | -20 | 250 | 130 | 1132 | 120 | 998 | 250 | 15 | 655 | 308 | 120 | 506 | 878 | 340 |
| CDF 8 | -24 | 280 | 160 | 1420 | 140 | 1136 | 288 | 20 | 730 | 328 | 120 | 576 | 996 | 457 |
| CDF 12 | -32 | 300 | 160 | 1678 | 180 | 1314 | 366 | 25 | 855 | 398 | 140 | 676 | 1154 | 940 |
| CDF 20 | -40 | 320 | 180 | 1916 | 245 | 1596 | 500 | 35 | 1045 | 505 | 180 | 830 | 1396 | 1650 |
| CDF 32 | -48 | 400 | 250 | 2400 | 300 | 1936 | 610 | 45 | 1260 | 583 | 200 | 1016 | 1716 | 3600 |
