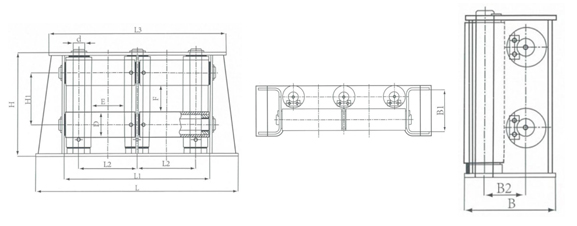

Seven-roller fairlead-Type D
Add time：2022-01-19 10:58:40
Number of views：468
| Steel wire dia. |
Nylon wire dia. |
E |
F |
D |
d |
L |
L1 |
L2 |
L3 |
B |
B1 |
B2 |
H |
H1 |
Weight Kg |
| 19.5 |
36 |
200 |
150 |
100 |
40-0.5 |
944 |
716 |
300 |
844 |
238 |
194 |
108 |
508 |
250 |
247 |
| 22.5 |
40 |
200 |
150 |
120 |
50-0.5 |
1048 |
776 |
320 |
928 |
280 |
232 |
128 |
552 |
270 |
377 |
| 26.0 |
45 |
200 |
180 |
130 |
55-0.5 |
1106 |
810 |
330 |
976 |
304 |
250 |
138 |
606 |
310 |
485 |
| 32.0 |
70 |
220 |
180 |
150 |
65-0.5 |
1250 |
910 |
370 |
1100 |
346 |
288 |
158 |
670 |
330 |
716 |
| 34.5 |
80 |
240 |
200 |
160 |
70-0.5 |
1340 |
980 |
400 |
1180 |
370 |
308 |
168 |
710 |
360 |
849 |
| 37.5 |
85 |
240 |
200 |
180 |
80-0.5 |
1450 |
1040 |
420 |
1270 |
417 |
345 |
190 |
770 |
380 |
951 |
| 43.0 |
95 |
260 |
210 |
200 |
90-0.5 |
1596 |
1146 |
460 |
1396 |
459 |
385 |
210 |
820 |
410 |
1546 |
| 52.0 |
100 |
260 |
220 |
230 |
100-0.5 |
1746 |
1236 |
490 |
1516 |
521 |
445 |
240 |
910 |
450 |
2143 |
| 60.5 |
- |
300 |
240 |
260 |
120-0.5 |
1990 |
1410 |
560 |
1730 |
590 |
500 |
270 |
1000 |
500 |
3134 |
| 68.0 |
- |
320 |
250 |
320 |
150-0.5 |
2330 |
1630 |
640 |
2010 |
714 |
620 |
330 |
1130 |
570 |
5100 |
